Thhn 4 Awg Stranded Black Copper Green Thhn Gauge Building Wire

Short Description:

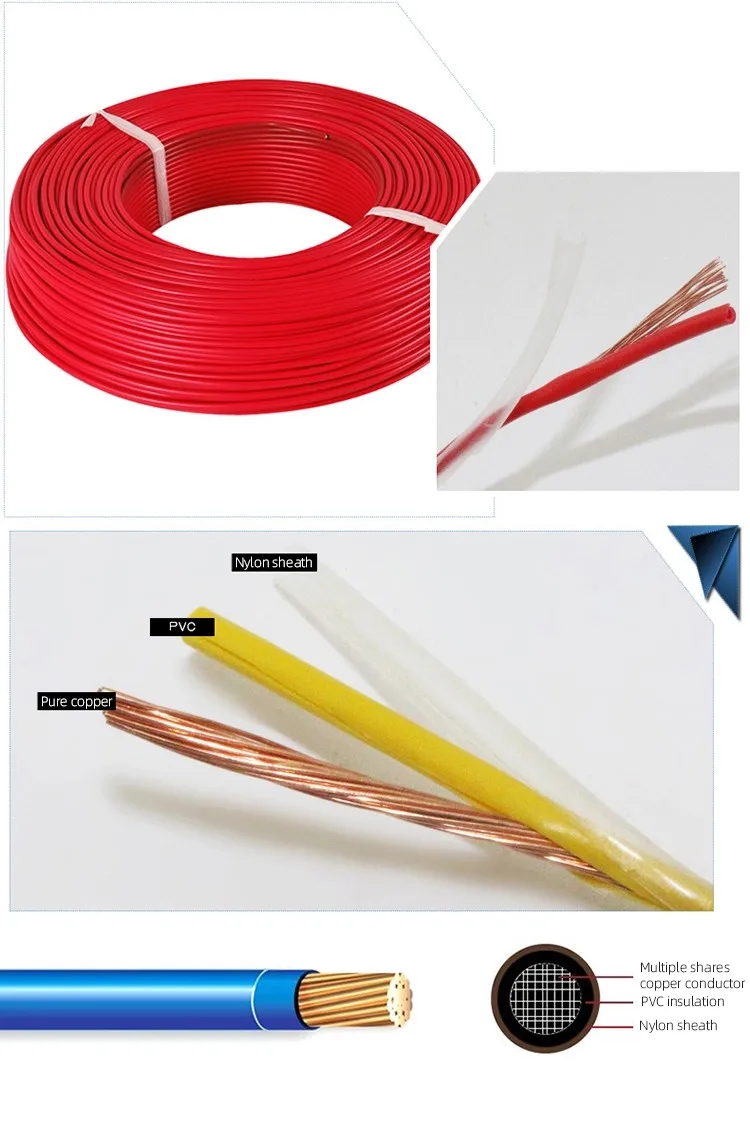

THHN,TFFN nylon sheathed wire and cable has better electrical and physical properties than ordinary PVC insulated wire and cable:
Nylon sheathed cables are rated at 450/750V and are widely used in household appliances, aerospace systems, construction and lighting.
THHN,TFFN nylon sheathed wires and cables have a long term working temperature of 90℃ or 75℃, the temperature of laying should not be lower than 0℃, and the bending radius should be not less than 4 times of the outer diameter of the cable.
Send email to us

THHN Wire Application

The copper conductors type THHN are used for power and lighting circuits in industrial, commercial and residential facilities, they are specially suitable for special installations through difficult ducts and to be used in abrasive zones or polluted with oils, grease, gasoline, etc. and other corrosive chemical substances as paints, solvents, etc., This type of conductor when it is used as THHN it can be used in dry places with maximum temperature of operation of 90 ºC. Regarding the voltage of service, for all the applications, it is of 600 V.

THHN Wire Standards:
The copper conductors type THHN meets the following specifications and standards:
• ASTM B-3:Copper Annealed or Soft Wires.
• ASTM B-8:Copper Stranded Conductors in Concentric Layers, Hard, Semi-hard or Soft.
• UL – 83:Wires and Cables Insulated with Thermoplastic Material.
• NEMA WC-5:Wires and Cables Insulated with Thermoplastic Material (ICEA S-61-402) for Transmission and Distribution of Electric Power

THHN Wire Construction
The conductors type THHN or THWN-2 can be solid or stranded and they are built with soft temper copper, they are also insulated with an uniform layer of Chloride of Polyvinyl (PVC) thermoplastic material resistant to the moisture and the heat, over which it is applied a protector coating of Nylon or Polyamide. They can be supplied in varied colors according to their size and with different packaging.

THHN Wire Parameter
SIZE
AWG
MCM 		 CROSS SECTION
AL
mm2 		 STRANDING
Number of wire
x diameter
mm. 		 INSULATION
THICKNESS
mm. 		 JACKET
THICKNESS
mm. 		 EXTERNAL
DIAMETER
mm. 		 TOTAL
WEIGHT
Kg/Km 		 AMPACITY
for 1 conductor
in free air
Amp. 		 AMPACITY
for 3 conductors
in conduit
Amp.
20 0,519 1 x 0.813 0,38 0,10 1,77 7,07 15 10
18 0,823 1 x 1,02 0,38 0,10 1,98 10,94 15 10
16 1,31 1 x 1,29 0,38 0,10 2,25 16,48 20 15
14 2,08 1 x 1,63 0,38 0,10 2,59 23,17 35 25
12 3,31 1 x 2,05 0,38 0,10 3,01 34,16 40 30
10 5,26 1 x 2,59 0,51 0,10 3,81 55,04 55 40
8 8,34 1 x 3,26 0,76 0,13 5,04 91,22 80 55
16 1,31 19 x 0,30 0,38 0,10 2,46 17,95 20 15
14 2,08 19 x 0,38 0,38 0,10 2,86 23,80 35 25
12 3,31 19 x 0,47 0,38 0,10 3,31 35,70 40 30
10 5,26 19 x 0,60 0,51 0,10 4,22 56,20 55 40
8 8,37 7 x 1,23 0,76 0,13 5,47 93,70 80 55
6 13,30 7 x 1,55 0,76 0,13 6,43 141,30 105 75
4 21,15 7 x 1,96 1,02 0,15 8,22 227,60 140 95
2 33,62 7 x 2,47 1,02 0,15 9,75 348,10 190 130
1 42,36 7 x 2,78 1,27 0,18 11,24 446,20 220 150
1/0 53,49 19 x 1,89 1,27 0,18 12,35 553,30 260 170
2/0 67,43 19 x 2,12 1,27 0,18 13,50 688,70 300 195
3/0 85,01 19 x 2,39 1,27 0,18 14,85 856,80 350 225
4/0 107,20 19 x 2,68 1,27 0,18 16,30 1069,50 405 260
250 127,00 37 x 2,09 1,52 0,20 18,07 1263,00 455 290
300 152,00 37 x 2,29 1,52 0,20 19,47 1502,00 505 320
350 177,00 37 x 2,47 1,52 0,20 20,73 1743,00 570 350
400 203,00 37 x 2,64 1,52 0,20 21,92 1981,00 615 380
500 253,00 37 x 2,95 1,52 0,20 24,09 2457,00 700 430
600 304,00 37 x 3,23 1,78 0,23 26,63 2960,00 780 475
650 329,00 37 x 3,37 1,78 0,23 27,61 3221,00 820 500
700 355,00 37 x 3,49 1,78 0,23 28,45 3453,00 855 520

#1/0 2/0 3/0 4/0 AWG for Powerflex Copper Construction Electrical Wires THHN THWN-2 Stranded Cable PVC Insulation 600V for Heati
