THHN cables are thermoplastic high heat resistant nylon wires with the following characteristics: Excellent heat, oil and humidity resistance, suitable for a wide range of environments. Widely used in household appliances, construction, lighting and industrial control systems, it is able to transmit current safely.
Product standard:
The production standard for anti-flaming and fire-resistant cables is GB/T19666-2005,GB/T5023-2008,JB/T8734-2012
* Main of cables features
1. Uo/U is 450/750V,300/500,
2. Long-term allowable temperature of the cable:The allowable temperature of 105 Cable should not exceed 105℃, the allowable temperature of other models should not exceed 70℃.
1.APPLICATION:

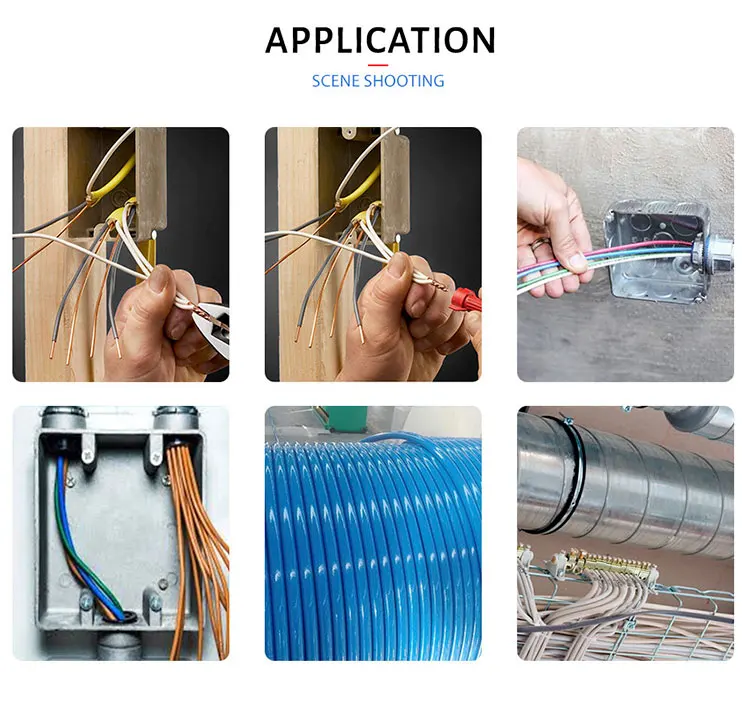

Ideal for cable tray installation, wire ways, open wiring, conduits, service entrance, feeders, and branch circuits for permanent installations.Suitable for power and lighting installations in residential, commercial, and industrial establishments.
2.CONSTRUCTION:
Conductor: Annealed copper, solid or stranded
Insulation: Poly Vinyl Chloride (PVC)
Sheath:Tough Polyamide (Nylon)
3.TEMPERATURE RATING:
90℃
4.SECTION:
From 2.0mm2 to 500mm2
5.COLOR:
Available in black, white, red, blue, green, and yellow colors.
6.STANDARD:
UL 83 & 1063
