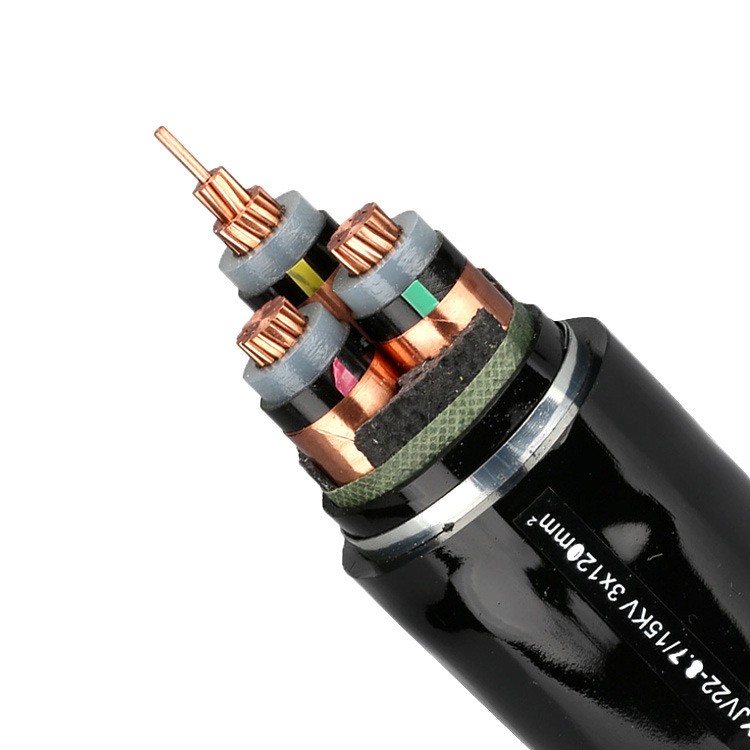

High Voltage YJV Cable – 8.7/15kV Copper Core Cross-Linked Polyethylene Insulated Power Cable

Product Overview:
High-voltage YJV cable is a high-quality power cable with a rated voltage of 8.7/15kV, which is made of high-quality oxygen-free copper conductor and cross-linked polyethylene (XLPE) insulation with excellent electrical properties, heat resistance and mechanical strength. It is suitable for medium and high voltage power transmission and distribution systems, widely used in urban power grids, industrial parks, substations and other occasions.
Product Features:
High electrical conductivity: adopting oxygen-free copper conductor, excellent electrical conductivity, low resistance, low power loss.
Excellent insulation performance: cross-linked polyethylene (XLPE) insulation layer, high voltage strength, stable insulation performance, low partial discharge.
High temperature resistance: long-term working temperature up to 90°C, maximum temperature up to 250°C in short circuit.
High mechanical strength: optional steel belt or steel wire armouring layer, enhancing the cable’s tensile strength and pressure resistance, suitable for complex laying environment.
Corrosion and ageing resistance: polyvinyl chloride (PVC) or polyethylene (PE) outer sheath, with good corrosion resistance and anti-aging properties, to extend the service life of the cable.
Environmental protection and safety: in line with RoHS environmental standards, non-toxic and harmless, safe and reliable to use.
Application areas:
Urban power grid: suitable for urban underground cable laying, transmission line reconstruction and so on.
Industrial field: widely used in large factories, mines, oil fields and other medium and high voltage power transmission.
Substation: applicable to substation, distribution room and other medium and high voltage power distribution system.
New energy field: it can be used for power transmission of new energy power generation projects such as wind farms and photovoltaic power stations.
Other fields: it is applicable to medium and high voltage power supply of large infrastructure such as tunnels, bridges, airports and so on.

Technical parameters:
Rated voltage: 8.7/15kV
Conductor material: oxygen-free copper
Insulation material: cross-linked polyethylene (XLPE)
Sheath material: polyvinyl chloride (PVC) or polyethylene (PE)
Armouring material: steel strip or steel wire (optional)
Operating temperature: -15°C to +90°C
Short-circuit temperature: up to 250°C (for 5 seconds)
Bending radius: single-core cable ≥ 20 times the outer diameter, multi-core cable ≥ 15 times the outer diameter
Partial discharge: ≤10pC (in accordance with IEC 60502)

Specification Model:
YJV-8.7/15kV: Single-core, three-core and other specifications are available.
Conductor cross-sectional area: 25mm² to 800mm², to meet different load requirements.
Optional models:
YJV
YJV22
YJV32
YJV62
Installation and laying:
Laying method: can be directly buried, through the pipe, overhead laying, suitable for indoor and outdoor environment.
Installation Precautions:
Mechanical damage should be avoided when laying to ensure that the cable is not extruded by external forces.
Bending radius should meet the requirements, single-core cable ≥ 20 times the outer diameter, multi-core cable ≥ 15 times the outer diameter.
The ambient temperature of laying should not be lower than 0°C.
Armoured cables need to be grounded to ensure safety.
Quality Certification:
ISO9001: Quality Management System Certification
CCC: China Compulsory Certification
RoHS: Environmental Protection Certificate
IEC standard: in line with the International Electrotechnical Commission (IEC) 60502 standard
GB standard: in line with the national standard GB/T 12706
Packaging and Transportation:
Packing: cable tray, the outer layer is wrapped with waterproof material to ensure that it is not damaged during transport.
Transportation: support land, sea, air and other modes of transport to ensure timely delivery.

Additional Information:
Customised service: customised specifications and special models can be provided according to customer requirements.
Sufficient stock: large amount of stock is available all year round, support fast delivery.
Global supply: support export, provide complete export customs clearance and logistics services.
Technical support: free technical support services such as cable selection, laying programme design and so on.
