HLX-PV photovoltaic DC convergence box

Product Overview

HLX-PV lightning protection convergence box is up to 24-way PV module string DC input convergence into one or more outputs, each with a fuse, the output is equipped with a lightning protector and circuit breaker, greatly simplifies the DC power distribution cabinet and inverter input wiring. Provide lightning protection, short circuit protection and grounding protection. The convergence box is divided into two types: intelligent and non-intelligent. Intelligent lightning protection convergence box is equipped with a convergence monitoring unit, which can monitor the input current of each photovoltaic cell string, the aggregate output voltage, the temperature of the box and the status of the lightning arrester, the status of the circuit breaker and so on.

The internal arrangement of the device is simple and clear, and the wiring is neat and reasonable. High reliability, simple maintenance outdoor wall-mounted installation, can adapt to a variety of harsh environments. In addition to the relevant core components, others can be customised according to user requirements.

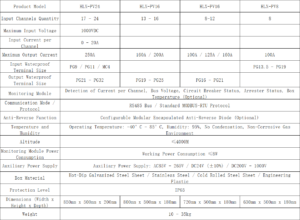

Functions and features

1.The protection level of the convergence box reaches IP65, with waterproof, anti-dust, anti-rust, anti-salt spray, to meet the requirements of outdoor installation;

2.Can be simultaneously accessed up to 24-way battery series;

The positive and negative poles of each battery string are equipped with PV special fuses to protect the module string when it fails, and the fuse base and fuses are used together to reduce the owner’s maintenance costs and effectively protect the personal safety of maintenance personnel.

3.The use of PV-specific high-voltage lightning protection can be converged after the bus positive pole to ground, negative pole to ground protection, continuous power (Uc) can reach 1000VDC ~ 1500VDC convergence box within the power supply module can be accessed up to 1000VDC ~ 1500VDC photovoltaic voltage;

4.Convergence box measurement and control module using the performance of the reliable Honeywell Hall components (DC CT sensors), for every -way PV string for current, bus voltage collection and monitoring. Alarm and local fault location, and can measure the temperature inside the convergence box, lightning protection and output circuit breaker status detection; 5.Convergence box in the monitoring module has a digital display function, can be displayed on the equipment for each string of components string of current, bus voltage, the temperature inside the convergence box, circuit breaker lightning protection status system power and equipment address and other related information.

6.With RS485/MODBUS-RTU serial port communication: and external interface parts are protected against lightning:

7.Can receive local monitoring device parameters to download, analysis and processing.

8.The power supply of the convergence box can be selected from outside 220VAC/DC or from the power supply provided by the convergence box itself, if the power supply is provided by the convergence box itself, there is no need for separate wiring for power supply on site.
