KVVR/KVVP/KVV22 450/750V Copper Wire Flexible Control Cable

Product Features:

1, rated voltage: 450 / 750V or 0.6/1 kv

2, conductor: single strand copper wire or stranded oxygen-free copper wire

3, insulation: PVC

4, sheath: PVC

5, color: black

Use range:

Laying in the room, cable trench, pipe and other fixed occasions.

Features / Uses:

This product is suitable for metallurgy, power, petrochemical and other industrial and mining enterprises in the exchange rated voltage 450 / 750V and below electrical instrumentation, power distribution equipment, signal transmission, control and measurement systems.

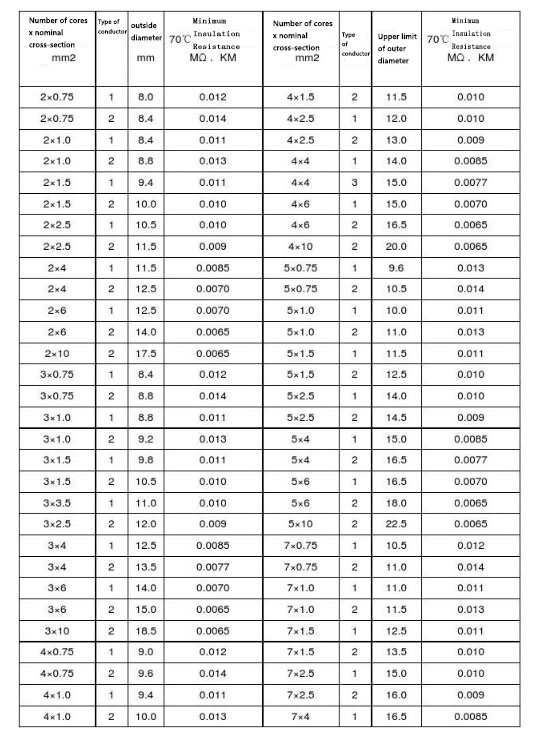

Specification
● The power frequency rated voltage Uo / U is 450 / 750V. ● The maximum long-term working temperature of the cable conductor is 70 ℃. ● The ambient temperature of the cable should not be lower than 0 ℃. If the ambient temperature is lower than 0 ℃, preheat the cable. ● The recommended allowable bending radius of the cable is as follows: Unarmored cable should not be less than 6 times the outer diameter of the cable; The armored or copper tape shielded cable should not be less than 12 times the outer diameter of the cable; The shielded flexible cable should not be less than 6 times the outer diameter of the cable.

Application：
1, Control cable is suitable for connecting wires between electrical equipments in controlling , monitoring loop and protecting
circuit at rated voltage up to and include 450/750V(A.C.)
2,Control power cable with fire resistance can also be made.
It applies to the places with special demands of flame retardant property .
