Low Voltage YJV Cable – 0.6/1kV Copper Core Cross-linked Polyethylene Insulated Power Cable

Product Overview:
Low-voltage YJV cable is a high-quality power cable widely used in construction, industry and power distribution systems. It is made of high quality oxygen-free copper conductor and cross-linked polyethylene (XLPE) insulation with excellent electrical performance, heat resistance and mechanical strength, and is suitable for power transmission and distribution with rated voltage 0.6/1kV and below.

Product Features:
High electrical conductivity: adopting oxygen-free copper conductor, it has excellent electrical conductivity, low resistance and low power loss.
Excellent insulation performance: cross-linked polyethylene (XLPE) insulation layer, high voltage strength, stable insulation performance.
High temperature resistance: long-term working temperature up to 90°C, maximum temperature up to 250°C in short circuit.
Corrosion resistance and anti-aging: polyvinyl chloride (PVC) outer sheath, with good corrosion resistance and anti-aging properties, to extend the service life of the cable.
Good flexibility: the cable structure is reasonably designed, easy to lay and install, adapt to a variety of complex environments.
Environmental protection and safety: in line with RoHS environmental standards, non-toxic and harmless, safe and reliable use.

Application areas:
Construction engineering: suitable for low-voltage power distribution systems in residential districts, commercial complexes, office buildings, and so on.
Industrial field: widely used in low voltage power transmission in factories, workshops, mines and other industrial places.
Power distribution system: applicable to substations, distribution rooms, box-type substations and other low-voltage power distribution.
Other fields: it can be used for low-voltage power supply in tunnels, subways, airports and other infrastructures.

Technical parameters:
Rated voltage: 0.6/1kV
Conductor material: oxygen-free copper
Insulation material: cross-linked polyethylene (XLPE)
Sheath material: polyvinyl chloride (PVC)
Operating temperature: -15°C to +90°C
Short circuit temperature: up to 250°C (for 5 seconds)
Bending radius: ≥15 times the outer diameter of the cable

Specification Model:

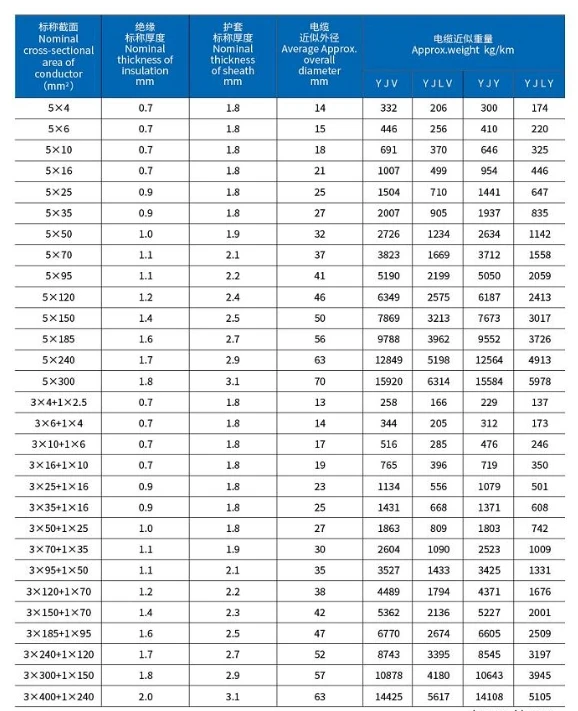

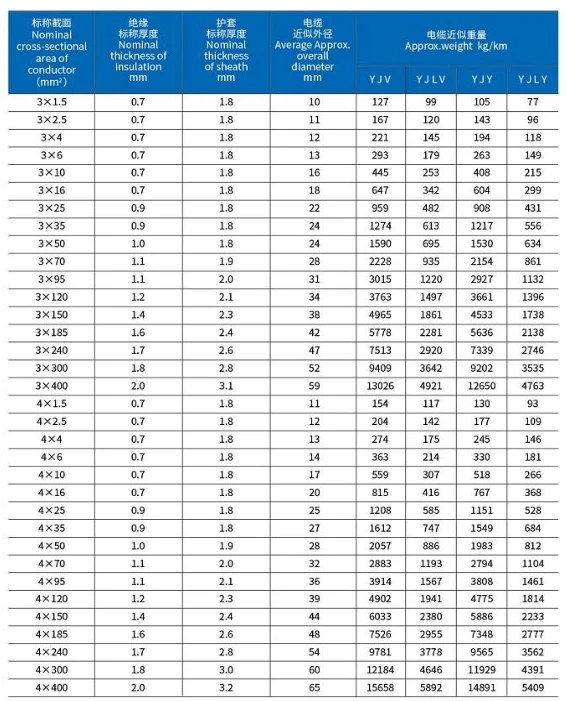

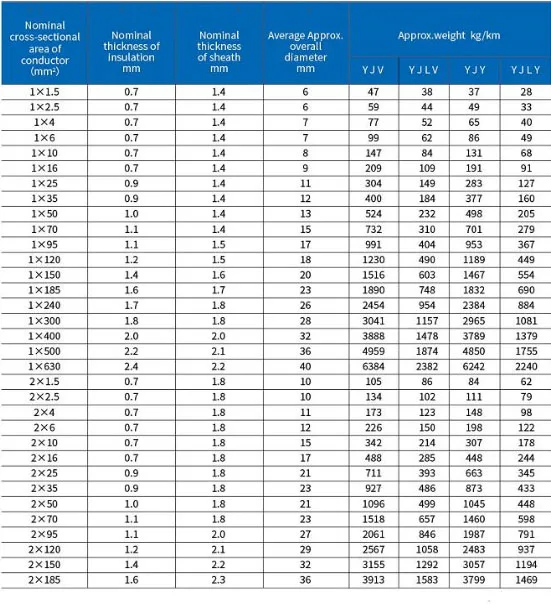

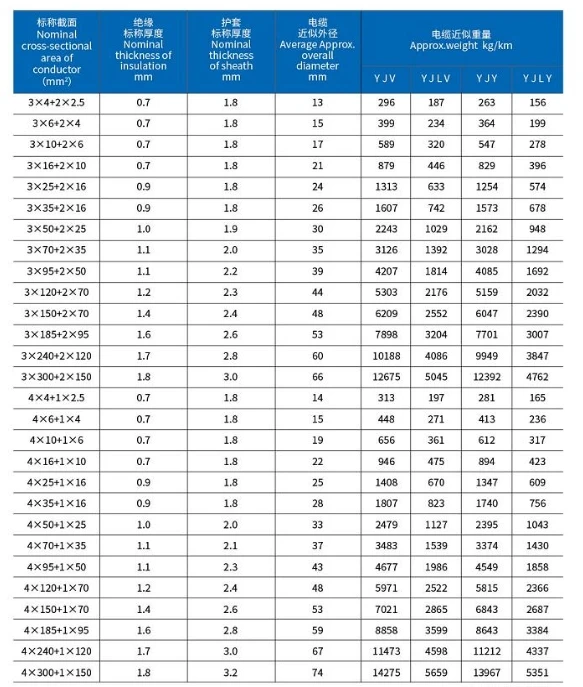

YJV-0.6/1kV: Single-core, double-core, three-core, four-core, five-core and other specifications are available.
Conductor cross-sectional area: 1.5mm² to 400mm², to meet different load requirements.
Optional models: YJV (ordinary type), YJV22 (steel belt armoured type), YJV32 (steel wire armoured type).
Installation and Laying:
Laying method: can be directly buried, through the pipe, overhead laying, suitable for indoor and outdoor environment.
Installation Precautions:
Mechanical damage should be avoided when laying to ensure that the cable is not extruded by external forces.
Bending radius should meet the requirements, single-core cable ≥ 20 times the outer diameter, multi-core cable ≥ 15 times the outer diameter.
The ambient temperature of laying should be not less than 0°C.

After-sales service:
Technical support: provide professional technical advice and installation guidance to ensure that customers use worry-free.
After-sales response: respond to customer needs within 24 hours, provide quick solutions.

Additional Information:
Customised service: customised specifications and special models can be provided according to customer requirements.
Sufficient stock: large amount of stock is available all year round, support fast delivery.
Global supply: support export, provide complete export customs clearance and logistics service.
