These individually copper screened cables are used for wiring of machines or between machines and equipment where a rubber cable is desired. These cables are also used for longwall lighting circuits, and may contain pilot and control cores or twisted pair and screened cores.

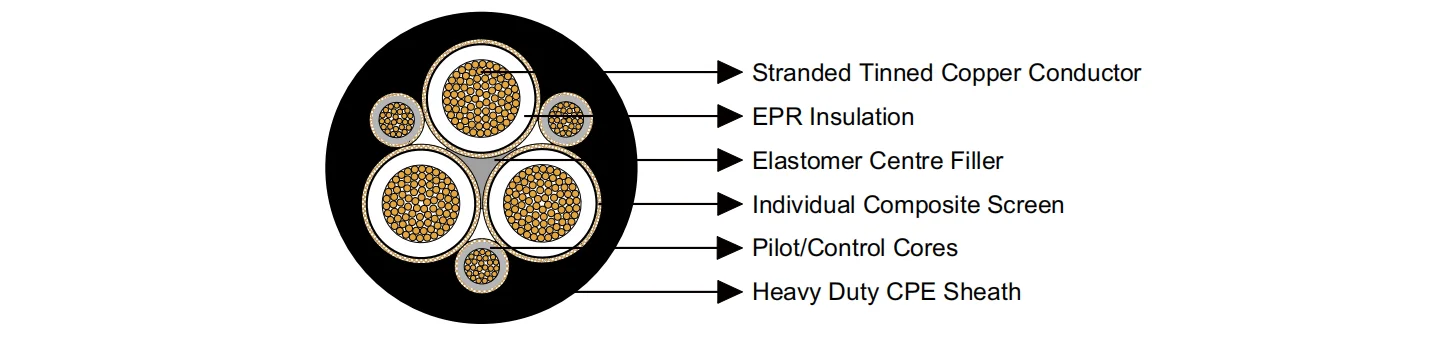

Conductors: Stranded tinned annealed copper conductor.
Insulation: EPR.
Filling: Elastomer centre filler.
Pilot/Control Cores: EPR covered and composite screened flexible stranded tinned copper conductor.
Individual Composite Screen (earth conductor): Tinned annealed copper braiding interwove with
polyester yarn.
Sheath: Heavy duty CPE sheath
AS/NZS 1972:2006
AS/NZS 1125
AS/NZS 3808
|
Number of Cores
|
Nomina Conductor Area
|
Strand Size
|
Insulation Thickness
|
Core Screen
|
Pilot Conductor
|
Nominal
Sheath Thickness |
|||
|
Strand Size
|
Area of Screen
|
Number of Pilots
|
Strand Size
|
Thickness of Covering
|
|||||
|
mm2
|
No/mm
|
mm
|
mm
|
mm2
|
No/mm
|
mm
|
mm
|
||
|
Type 2S 1.1/1kV Individually Screened
|
|||||||||
|
3
|
10
|
77/0.40
|
1.2
|
0.2
|
7.9
|
3
|
–
|
–
|
1.8
|
|
4
|
10
|
77/0.40
|
1.2
|
0.2
|
7.9
|
4
|
–
|
–
|
1.8
|
|
2
|
16
|
126/0.40
|
1.2
|
0.2
|
9.0
|
2
|
–
|
–
|
1.8
|
|
3
|
16
|
126/0.40
|
1.2
|
0.2
|
9.0
|
3
|
–
|
–
|
1.8
|
|
4
|
16
|
126/0.40
|
1.2
|
0.2
|
9.0
|
4
|
–
|
–
|
1.8
|
|
3
|
10
|
77/0.40
|
1.2
|
0.2
|
7.9
|
3
|
30/0.20
|
1.0
|
1.8
|
|
2
|
16
|
126/0.40
|
1.2
|
0.2
|
9.0
|
2
|
30/0.20
|
1.0
|
1.8
|
|
3
|
16
|
126/0.40
|
1.2
|
0.2
|
9.0
|
3
|
30/0.20
|
1.0
|
1.8
|
|
3
|
25
|
209/0.40
|
1.4
|
0.2
|
11.3
|
3
|
30/0.20
|
1.0
|
1.8
|
|
3
|
35
|
285/0.40
|
1.4
|
0.2
|
12.4
|
3
|
30/0.20
|
1.0
|
1.8
|
|
3
|
50
|
380/0.40
|
1.6
|
0.25
|
17.5
|
3
|
30/0.20
|
1.0
|
1.9
|
|
Type 2S 1.1/1kV Individually and Collectively Screened
|
|||||||||
|
30
|
1.5
|
30/0.25
|
1.0
|
0.3
|
14.0
|
–
|
–
|
–
|
1.9
|
|
Type 2S 3.3/3.3Kv Individually Screened
|
|||||||||
|
3
|
10
|
77/0.40
|
3.0
|
0.2
|
11.3
|
3
|
30/0.25
|
1.0
|
1.8
|
|
3
|
16
|
126/0.40
|
3.0
|
0.2
|
12.4
|
3
|
30/0.25
|
1.0
|
1.8
|
|
3
|
25
|
209/0.40
|
3.0
|
0.2
|
13.6
|
3
|
30/0.25
|
1.0
|
1.9
|
|
3
|
35
|
285/0.40
|
3.0
|
0.2
|
15.3
|
3
|
30/0.25
|
1.0
|
2.0
|
|
3
|
50
|
380/0.40
|
3.0
|
0.2
|
17.0
|
3
|
30/0.25
|
1.0
|
2.1
|
|
3
|
70
|
203/0.67
|
3.0
|
0.3
|
30.5
|
3
|
30/0.25
|
1.0
|
2.2
|
|
3
|
95
|
259/0.67
|
3.0
|
0.3
|
30.5
|
3
|
30/0.25
|
1.0
|
2.3
|
|
3
|
120
|
336/0.67
|
3.0
|
0.4
|
47.5
|
3
|
30/0.25
|
1.0
|
2.5
|
